AC EV Charger

Wall Mounted EV Charger, Pedestal Mounted EV Charger

AC EV Charger (Wall Mounted/Pedestal Mounted)
  • AC EV Charger (Wall Mounted/Pedestal Mounted)
  • AC EV Charger (Wall Mounted/Pedestal Mounted)
  • AC EV Charger (Wall Mounted/Pedestal Mounted)
Contact Us
Specifications

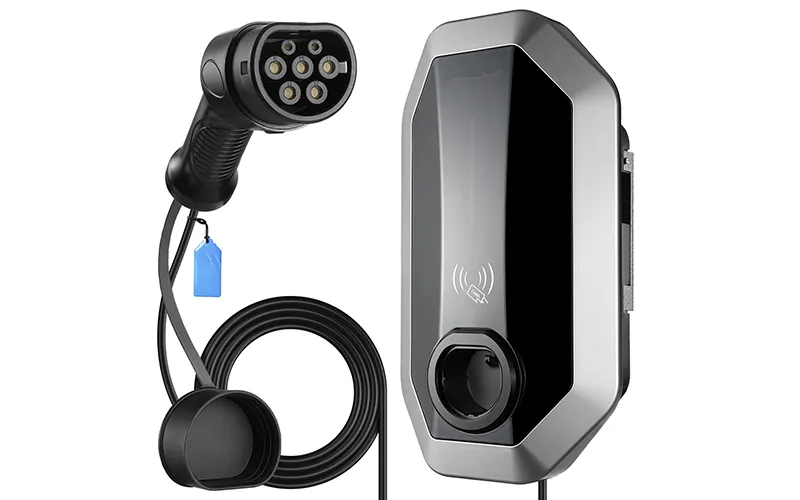

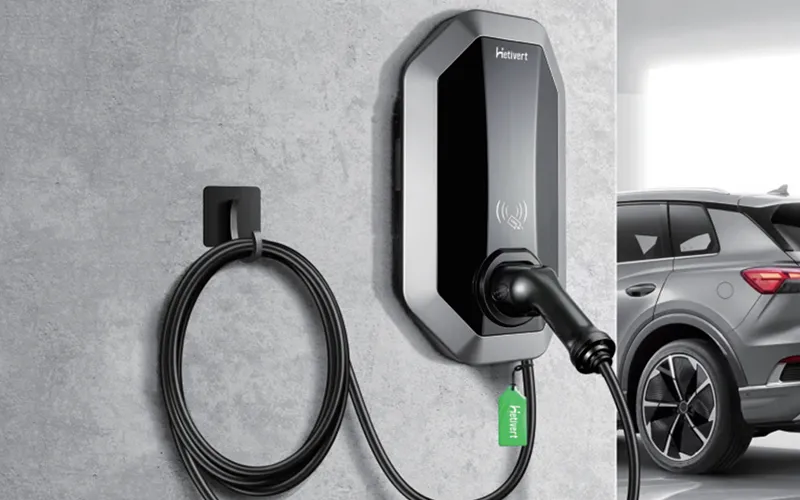

Available in wall-mounted and pedestal-mounted configurations, this AC EV charger is developed for residential and commercial charging applications. The charger features a streamlined diamond-inspired design and is available in power ratings from 7kW to 22kW. Its compact structure, lightweight design, and small installation footprint make it suitable for residential communities, shopping centers, and other everyday charging locations.

  • Protection Rating: IP55
  • Operating Temperature: -30°C to +70°C (power derating above 55°C)
  • Standby Power Consumption: ≤6W
Technical Specifications
INCEVA-7A INCEVA-11T INCEVA-21T
Mechanical Cooling System Natural air cooling Natural air cooling Natural air cooling
Dimensions (W × D × H) 250 × 131 × 445 mm 250 × 131 × 445 mm 250 × 131 × 445 mm
AC Input Rated Input Voltage 220 Vac 380 Vac 380 Vac
Grid Frequency 50 Hz 50 Hz 50 Hz
AC Output Output Voltage 220 Vac 380 Vac 380 Vac
Output Channels Single connector Single connector Single connector
Max. Current / Single Connector 32 A 16 A 32 A
Compliance Remote Communication Ethernet, 4G module (Free data during warranty period), Wi-Fi, Bluetooth Ethernet, 4G module (Free data during warranty period), Wi-Fi, Bluetooth Ethernet, 4G module (Free data during warranty period), Wi-Fi, Bluetooth
Protection Operating Temperature -30°C ~ +70°C (Derating above 55°C) -30°C ~ +70°C (Derating above 55°C) -30°C ~ +70°C (Derating above 55°C)
Protection Rating IP55 IP55 IP55
Protection Functions Overvoltage protection, Undervoltage protection, Overcurrent protection, Short circuit protection, Type B residual current protection (RCD), Grounding protection, Over-temperature protection, Low-temperature protection, Lightning/Surge protection, etc.
