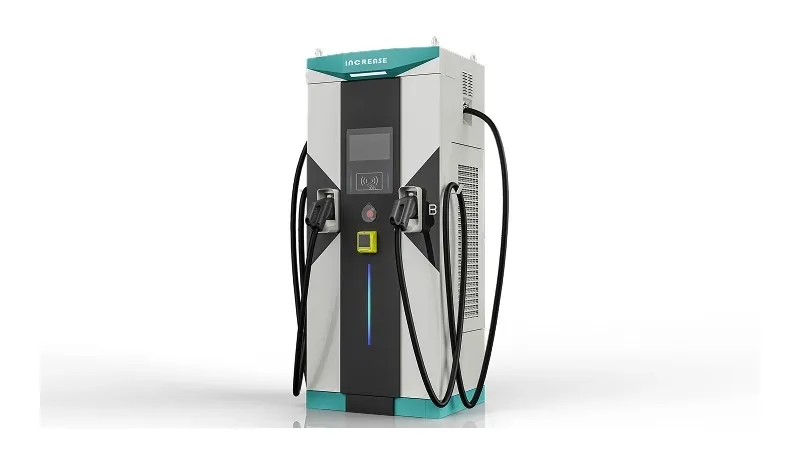

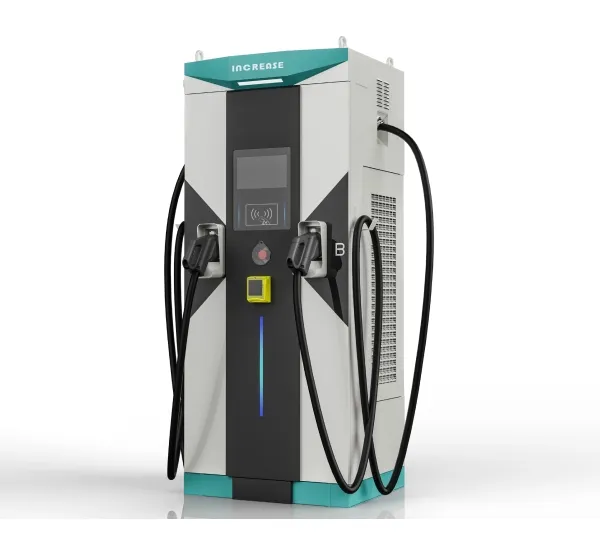

DC EV Charging Station 40-400kW

DC EV Charging Station 40-400kW
Contact Us
Specifications

This DC EV charging station uses high-efficiency 40kW constant-power charging modules and supports output voltages up to 1000V. Charging efficiency exceeds 96%, and the system supports zero-power standby mode to reduce energy consumption when not in use. The charger supports wall-side installation and is suitable for public charging stations, highway parking areas, and other commercial charging applications.

  • Protection Rating: IP55
  • Operating Temperature: -30°C to +70°C (power derating above 55°C)
  • Standby Power Consumption: ≤20W
  • Zero-Power Standby: Supported
  • Certifications: CE, UL
Technical Specifications
40kW 60kW 120kW 160kW 180kW 240kW 320kW 360kW 400kW
Mechanical Dimensions(W×D×H) 770×620×1800mm 770×620×1800mm 850×850×2000mm 850×850×2000mm 850×850×2000mm 850×850×2000mm 850×850×2000mm 850×850×2000mm 850×850×2000mm
Weight (kg) 210kg 240kg 300kg 340kg 360kg 420kg 480kg 500kg 520kg
Charging Interfaces CCS1+CCS1, CCS1+CCS2, CCS2+CCS2, CCS1+GB/T, CCS2+GB/T
Gun Cable Length 5m (customizable) 5m (customizable) 5m (customizable) 5m (customizable) 5m (customizable) 5m (customizable) 5m (customizable) 5m (customizable) 5m (customizable)
AC Input Rated Voltage 400Vac±10% 400Vac±10% 400Vac±10% 400Vac±10% 400Vac±10% 400Vac±10% 400Vac±10% 400Vac±10% 400Vac±10%
Grid Frequency 45~65Hz 45~65Hz 45~65Hz 45~65Hz 45~65Hz 45~65Hz 45~65Hz 45~65Hz 45~65Hz
Power Factor ≥0.99 ≥0.99 ≥0.99 ≥0.99 ≥0.99 ≥0.99 ≥0.99 ≥0.99 ≥0.99
System Efficiency ≥96% ≥96% ≥96% ≥96% ≥96% ≥96% ≥96% ≥96% ≥96%
DC Output System Power 40kW 60kW 120kW 160kW 180kW 240kW 320kW 360kW 400kW
Output Channels Supports single and double guns configurations Supports single and double guns configurations Supports single and double guns configurations Supports single and double guns configurations Supports single and double guns configurations Supports single and double guns configurations Supports single and double guns configurations Supports single and double guns configurations Supports single and double guns configurations
Output Voltage DC 200~1000V DC 200~1000V DC 200~1000V DC 200~1000V DC 200~1000V DC 200~1000V DC 200~1000V DC 200~1000V DC 200~1000V
Maximum Output Current per Channel(A) 133 200 250/300 250/300 250/300 250/300 250/300 250/300 250/300
Maximum Output Current of the Whole(A) 133 200 250/400 250/400 250/400 500/600 500/600 500/600 500/600
Compliance Vehicle-Charger PLC(DIN70121, ISO15118) PLC(DIN70121, ISO15118) PLC(DIN70121, ISO15118) PLC(DIN70121, ISO15118) PLC(DIN70121, ISO15118) PLC(DIN70121, ISO15118) PLC(DIN70121, ISO15118) PLC(DIN70121, ISO15118) PLC(DIN70121, ISO15118)
OCPP OCPP1.6Jor OCPP2.0 OCPP1.6Jor OCPP2.0 OCPP1.6Jor OCPP2.0 OCPP1.6Jor OCPP2.0 OCPP1.6Jor OCPP2.0 OCPP1.6Jor OCPP2.0 OCPP1.6Jor OCPP2.0 OCPP1.6Jor OCPP2.0 OCPP1.6Jor OCPP2.0
Certification mark CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL CE UL
Protection Operating Temperature -30℃~+70℃(derated output above 55℃) -30℃~+70℃(derated output above 55℃) -30℃~+70℃(derated output above 55℃) -30℃~+70℃(derated output above 55℃) -30℃~+70℃(derated output above 55℃) -30℃~+70℃(derated output above 55℃) -30℃~+70℃(derated output above 55℃) -30℃~+70℃(derated output above 55℃) -30℃~+70℃(derated output above 55℃)
Protection Class IP55 IP55 IP55 IP55 IP55 IP55 IP55 IP55 IP55
Protection Functions Input over-voltage and under-voltage protection, output over-voltage protection, output over current protection, short-circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal gun disconnection protection, lightning protection, tilt alarm protection (optional), water immersion alarm protection(optional)
Application Cases
Application Cases

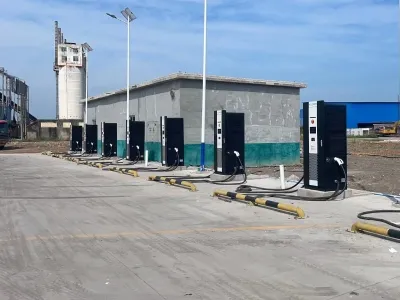

Guangxi Mining & Metallurgical Materials Charging Station

320kW Outdoor Dual-Gun Integrated DC EV Charger
