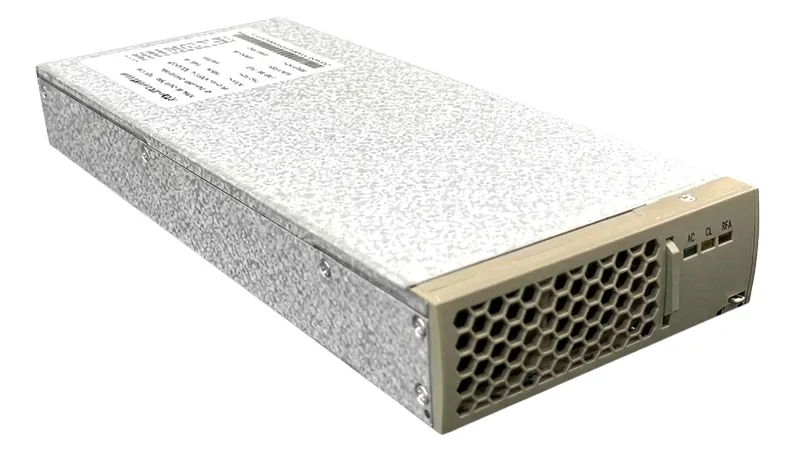

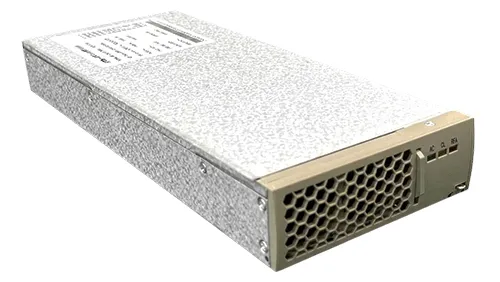

DC Single-Phase Fast Charger Module 3.5kW

DC Single-Phase Fast Charger Module 3.5kW
Contact Us
Specifications

Our 3.5kW DC fast charging modules are high-frequency switching rectifier modules developed for industrial vehicles, battery charging systems, and smart logistics equipment. They take single-phase AC input and deliver stable DC output, which is suitable for compact charging systems used in industrial vehicles, battery charging, and smart logistics equipment.

  • Output Voltage Range: 30Vdc ~ 100Vdc
  • Rated Output Current: 35A
Technical Specifications
Input Parameter
Rated Input Voltage 220 Vac / 220 Vdc; 110 Vac / 110 Vdc (Half Load)
Input Voltage Range AC: 176 ~ 300 Vac (Full Load); 85 ~ 176 Vac (Derating)
DC: 176 ~ 400 Vdc (Full Load); 85 ~ 176 Vdc (Derating)
Input Current < 25 A
Frequency 45 Hz ~ 65 Hz
Power Factor (PF) ≥ 0.99
THDi ≤ 5%
Input Start-up Voltage ≥ 85 Vac or 85 Vdc
Input Sampling Accuracy ± 5 Vac or Vdc
Input Over/Under Voltage AC Input: Shutdown > 300 Vac, Resume < 285 Vac; Shutdown < 80 Vac, Resume > 95 Vac; Accuracy ± 5 Vac
DC Input: Shutdown > 420 Vdc, Resume < 405 Vdc; Shutdown < 80 Vdc, Resume > 95 Vdc; Accuracy ± 5 Vdc
Input Protection Fuse; Surge Protection Circuit (SPD)
Output Parameter
Rated Output Power 3.5 kW
Rated Output Current 35 A
Output Voltage Range 30 ~ 100 Vdc
Adjustable Current Limiting Range 10% ~ 120%
Peak-to-Peak Ripple & Noise ≤ ± 0.5%
Voltage Stabilized Accuracy ≤ ± 0.5%
Current Regulation Accuracy ≤ ± 1.0%
Current Sharing Error ≤ ± 5.0%
Efficiency 92.5% / 93.0%
Short Circuit Enters output current limiting mode; automatically resumes after fault is cleared
Over Current Module internal over-current shutdown; automatically resumes after fault is cleared
Over Voltage Automatic shutdown and lockout; re-power or reset the module after fault is cleared
Operating Environment
Operating Temperature Range -40°C ~ 45°C (Normal Operation); 45°C ~ 75°C (Linear Derating Output)
Storage Temperature Range -40°C ~ 75°C
Relative Humidity 0 ~ 95% RH (Non-condensing)
Altitude 2000m (Full Load Output)
Physical Characteristics
Dimension (W × H × D) 125 × 41 × 303 mm
Net Weight 2 kg

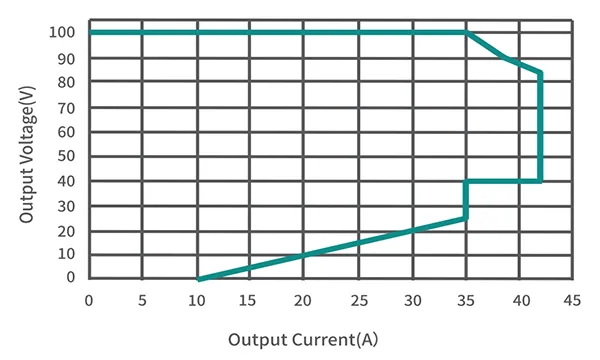

Performance Curve
Performance Curve
