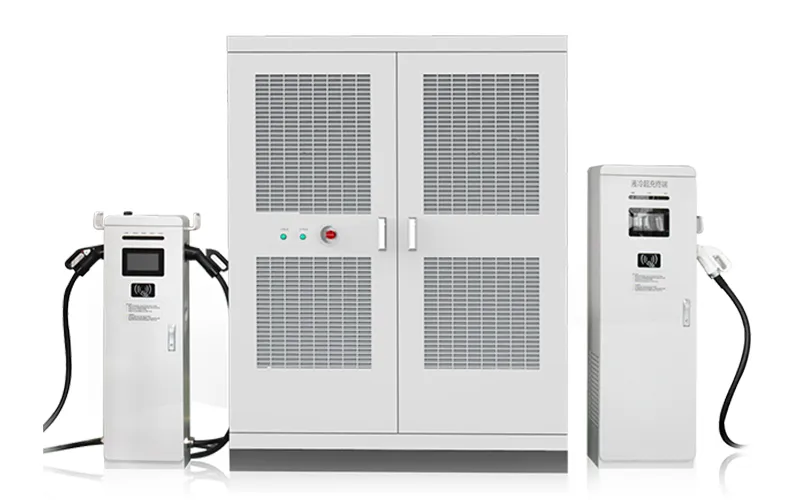

Split DC EV Charger 600-720kW

Distributed charger system

Built for high-power charging applications, this distributed charging system uses high-efficiency 40kW-60kW constant-power charging modules and supports output voltages up to 1000V. Charging efficiency exceeds 96%, and the system can be configured with 2 to 12 charging connectors to accommodate different charging requirements. It is suitable for public charging stations, highway service areas, heavy-duty truck charging, bus depots, and other high-power charging applications.

Protection Rating: IP55
Operating Temperature: -30°C to +70°C (power derating above 55°C)
Standby Power Consumption: ≤100W

Technical Specifications

		INCEVD-600A	INCEVD-720A
Mechanical	Cooling System	Matrix: Forced air cooling;Terminal: Forced air/Liquid cooling	Matrix: Forced air cooling;Terminal: Forced air/Liquid cooling
	Dimensions (Matrix)	1500 × 850 × 1900 mm	1500 × 850 × 1900 mm
	Dimensions (Fast Charge Single/Dual-Plug Terminal)	400 × 240 × 1350 mm	400 × 240 × 1350 mm
	Dimensions (Supercharge Single-Plug Terminal)	500 × 300 × 1600 mm	500 × 300 × 1600 mm
AC Input	Rated Input Voltage	380 Vac ± 20%	380 Vac ± 20%
	Grid Frequency	45 ~ 65 Hz	45 ~ 65 Hz
	Power Factor (PF)	≥ 0.99	≥ 0.99
	System Efficiency	≥ 96% (At half load and above)	≥ 96% (At half load and above)
DC Output	Power Distribution	Intelligent scheduling, allocation on demand	Intelligent scheduling, allocation on demand
	Output Channels	2 to 10 connectors, supports 2 supercharging channels	2 to 12 connectors, supports 2 supercharging channels
	Output Voltage	DC 150 ~ 1000 V	DC 150 ~ 1000 V
	Max. Current / Total System	2000 A	2400 A
	Terminal Output Current	Fast charge single-plug: 250A; Fast charge dual-plug: 250A × 2; Supercharge single-plug: 600A / 800A; Customized terminal: 1000A	Fast charge single-plug: 250A; Fast charge dual-plug: 250A × 2; Supercharge single-plug: 600A / 800A; Customized terminal: 1000A
Compliance	BMS Communication	Compatible with old and new standards, meeting the charging needs of old and new vehicle models	Compatible with old and new standards, meeting the charging needs of old and new vehicle models
Protection	Operating Temperature	-30°C ~ +70°C (Derating above 55°C)	-30°C ~ +70°C (Derating above 55°C)
	Protection Rating	IP55 for system enclosure	IP55 for system enclosure
	Dustproof Class	G3-level dust filter	G3-level dust filter
	Protection Functions	Input over/under voltage protection, Output overvoltage protection, Output overcurrent protection, Short circuit protection, Battery reverse connection protection, Insulation monitoring protection, Door enclosure protection, BMS data anomaly protection, Emergency stop protection, Electromagnetic lock anomaly protection, Abnormal un-plugging protection, Lightning/Surge protection, Anti-tilt alarm protection (optional), Flooding/Water-immersion alarm protection (optional), etc.
