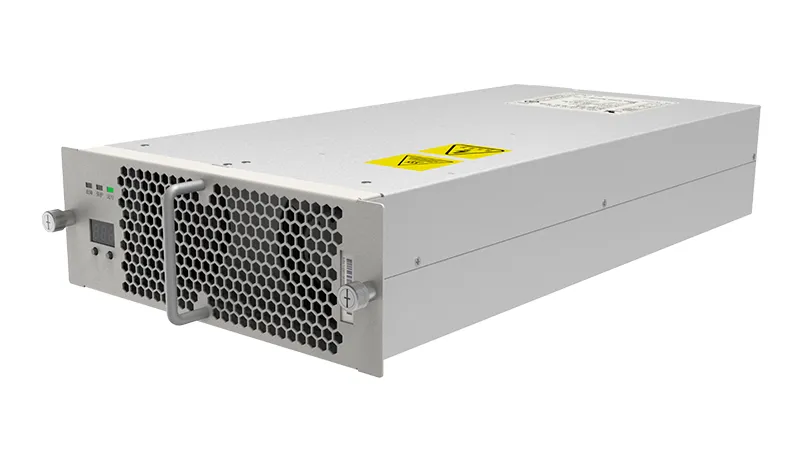

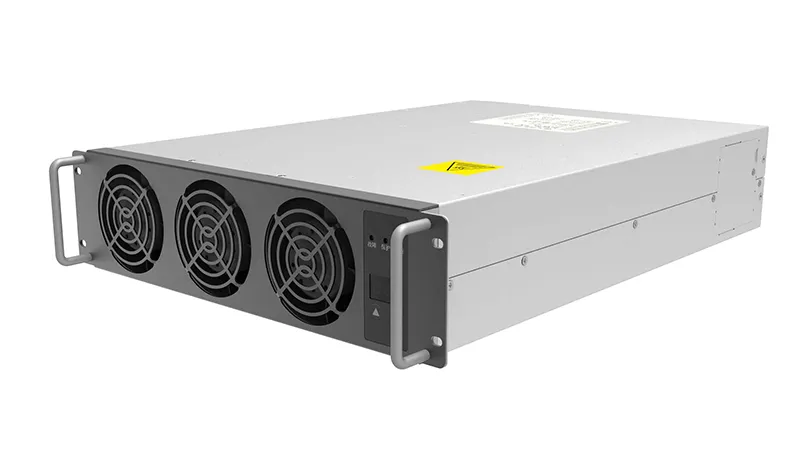

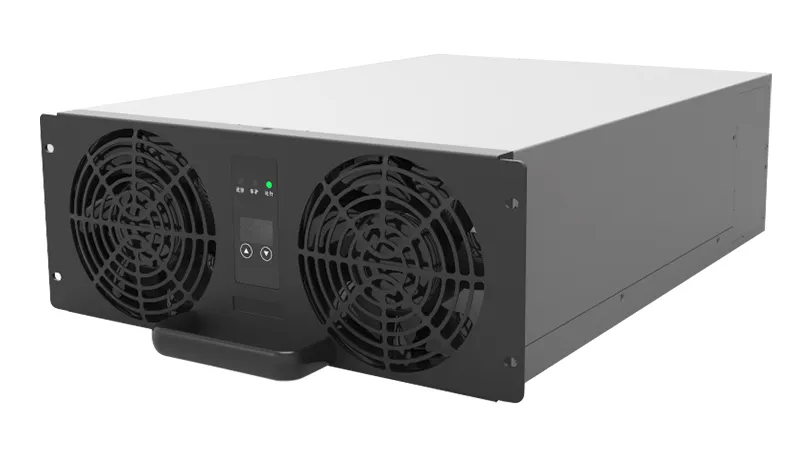

AC-DC EV Power Module 20/30/40/60kW (Air Cooled)

AC-DC EV Power Module 20/30/40/60kW (Air Cooled)

20/30/40/60kW AC-DC EV power modules convert AC input into DC output for fast EV charging systems. Thanks to their 150–1000V output range, they can support the charging needs of different electric vehicle models and DC charger configurations. These EV modules deliver full power from -40°C to 55°C and continue operating at higher temperatures with derated output, up to 75°C. They are suitable for residential, commercial, and outdoor DC fast charging applications.

Contact Us
Specifications
20kW
  • Output Voltage Range: 150Vdc ~ 1000Vdc
  • Rated Output Current: ≤66.7A, see U/I curve
30kW
  • Output Voltage Range: 150Vdc ~ 1000Vdc
  • Rated Output Current: ≤100A, see U/I curve
40kW
  • Output Voltage Range: 150Vdc ~ 1000Vdc
  • Rated Output Current: 133.3A/100A, see U/I curve
60kW
  • Output Voltage Range: 50Vdc ~ 1000Vdc
  • Rated Output Current: ≤200A
Technical Specifications
EVR1000-20000E EVR1000-30000E EVR1000-40000D(E) EVR1000-40000C(E) EVR1000-60000C
Model EVR1000-20000E EVR1000-30000E EVR1000-40000D(E) EVR1000-40000C(E) EVR1000-60000C
Input Parameters
Rated Input Voltage 400Vac 400Vac 380Vac 380Vac 380Vac
Input Frequency 50Hz/60Hz 45Hz~65Hz 45Hz~65Hz 45Hz~65Hz 45Hz~65Hz
Max. Power Factor ≥0.99 ≥0.99 ≥0.99 ≥0.99 ≥0.99
THDi ≤5% ≤5% ≤5% ≤5% ≤5%
Output Parameters
System Power 20kW 30kW 40kW 40kW 60kW
Output Voltage range 150~1000Vdc 150~1000Vdc 150~1000Vdc 150~1000Vdc 50~1000Vdc
Output Current ≤66.7A, see U/I curve ≤100A, see U/I curve 133.3A, see U/I curve 100A, see U/I curve ≤200A
Max. Efficiency ≥95% ≥96.5% ≥96.5% ≥96.5% ≥97.5%
Communication CAN 2.0 CAN 2.0 CAN 2.0 CAN 2.0 CAN 2.0
Operating Environment
Operating Temperature Range -40℃~+55℃, w/o derating; +55℃~+70℃, derating -40℃~+55℃, w/o derating; +55℃~+70℃, derating -40℃~+55℃, w/o derating; +55~+75℃, derating -40℃~+55℃, w/o derating; +55~+75℃, derating -40℃~+55℃, w/o derating; +55~+75℃, derating
Operating Humidity 0-95% 0-95% 0-95% 0-95% 0-95%
Altitude ≤2000m ≤2000m ≤2000m ≤2000m ≤2000m
Physical Characteristics
Noise Level ≤65dB ≤65dB ≤65dB ≤65dB ≤60dB
Dimensions 248×487.2×84mm 248×461.2×84mm 248×461.2×110mm 300×437.5×84mm 300×463.5×125mm
Weight 10kg 15kg 17kg 17kg ≤23kg
Performance Curves
EVR1000-20000E

EVR1000-20000E

EVR1000-30000E

EVR1000-30000E

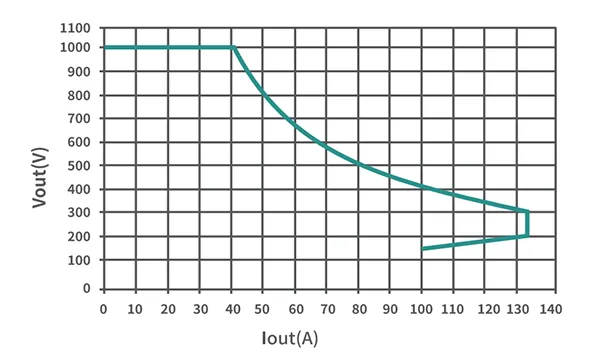

EVR1000-40000D(E)

EVR1000-40000D(E)

EVR1000-40000C(E)

EVR1000-40000C(E)
