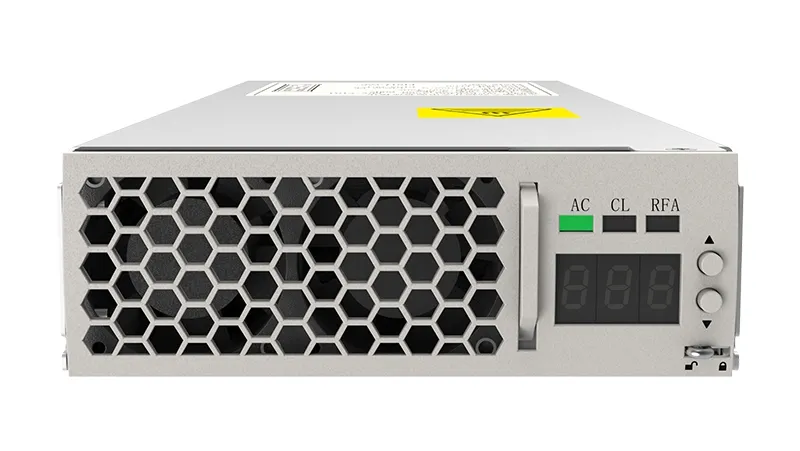

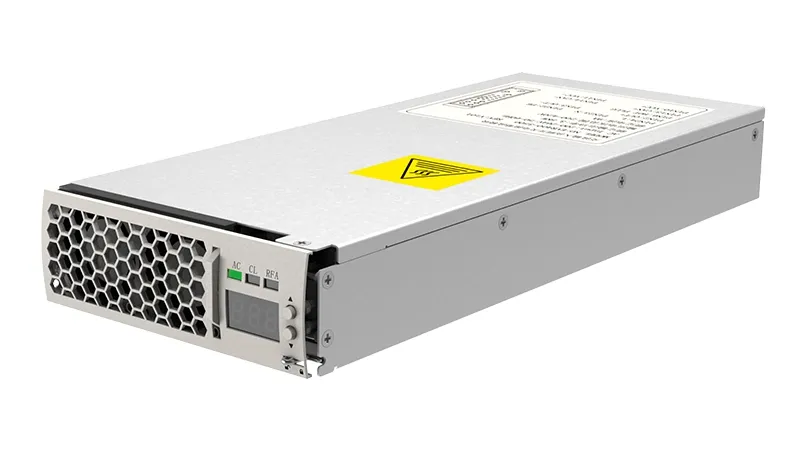

EV DC Charging Power Module 3.5kW, Air Cooled

3.5kW EV DC charging power modules are high-frequency switching rectifier modules that support both AC and DC input and provide adjustable DC output from 200V to 420V. They have a compact air-cooled structure that is suitable for portable chargers, vehicle-mounted chargers, battery swapping stations, and other small charging systems that need stable DC output and flexible input compatibility.

  • Output Voltage Range: 200Vdc ~ 420Vdc
  • Rated Output Current: 9 A
Contact Us
Technical Specifications
Rated Input Voltage 220Vac / 220Vdc; 110Vac / 110Vdc (half load)
Input Frequency Range 45Hz ~ 65Hz
Max. Input Current < 25A
Total Harmonic Current Distortion (THDi) ≤ 5%
Power Factor (PF) ≥ 0.99
Rated Output Power 3.5 kW
Rated Output Current 9 A
Output Voltage Range 200Vdc ~ 420Vdc
Efficiency ≥ 93% @ 100% Load; ≥ 93.5% @ 50% Load
Communication Interface CAN
Operating Temperature Range -40℃ ~ 45℃ (normal operation); 45℃ ~ 75℃ (derating output)
Storage Temperature Range -40℃ ~ 75℃
Relative Humidity 0 ~ 95% RH (non-condensing)
Altitude ≤ 2000m (full load output)
Dimensions (W x H x D) 125mm × 41mm × 303mm
Net Weight 2 kg
