Specifications

These liquid-cooled AC-DC power modules convert AC input into DC output for high-power DC fast charging systems. Their SiC power devices and full liquid-cooling structure help keep heat and noise under control, which is suitable for charging sites that need steady operation in demanding conditions. Our liquid-cooled power modules are available in 30kW and 40kW models and can be integrated into DC fast chargers with different power configurations and support stable operation from -40°C to 60°C.

30kW

  • Output Voltage Range: 150Vdc ~ 1000Vdc
  • Output Current Range: ≤120A

40kW

  • Output Voltage Range: 150Vdc ~ 1000Vdc
  • Rated Output Current: 40A
Technical Specifications
Model EVR1000-30000A(E) EVR1000-40000(E) EVR1000-40000A(B)
Input Parameters
Rated Input Voltage 400 Vac / 480 Vac 3-Phase, 380 Vac / 480 Vac 3-Phase, 380 Vac / 480 Vac
Input Frequency 50 Hz / 60 Hz 45 Hz ~ 65 Hz 45 Hz ~ 65 Hz
Input Current ≤ 63 A ≤ 76 A ≤ 76 A
Power Factor (PF) ≥ 0.99 (Maximum value) ≥ 0.99 ≥ 0.99
THDi ≤ 5% ≤ 5% ≤ 5%
Output Parameters
System Power 30 kW 40 kW 40 kW
Rated Output — 1000 V @ 40 A 1000 V @ 40 A
Output voltage range 150 ~ 1000 Vdc 150 ~ 1000 Vdc 150 ~ 1000 Vdc
Output Current Range ≤ 120 A 0 ~ 133.4 A (T ≤ 60℃) 0 ~ 133.4 A (T ≤ 60℃)
Max. Efficiency ≥ 96.5% ≥ 96.0% (Full Load), ≥ 96.5% (Peak) ≥ 96.0% (Full Load), ≥ 96.5% (Peak)
Communication CAN 2.0 CAN Bus CAN Bus
Operating Environment
Operating Temperature Range -40℃ ~ +60℃ (w/o derating); Stop operation at 75℃ -40℃ ~ +60℃ (Normal Operation) -40℃ ~ +60℃ (Normal Operation)
Storage temperature — -40℃ ~ +75℃ -40℃ ~ +75℃
Humidity 0 ~ 95% RH (Non-condensing) 0 ~ 95% RH (Non-condensing) 0 ~ 95% RH (Non-condensing)
Atmospheric pressure/ Altitude ≤ 2000 m ≤ 2000 m (Full load output) ≤ 2000 m (Full load output)
Physical Characteristics
Dimensions (w/o Handle) 370 × 542.5 × 73 mm 370 × 542.5 × 73 mm 370 × 543 × 73 mm
Weight 27 kg Approx. 27 kg Approx. 27 kg

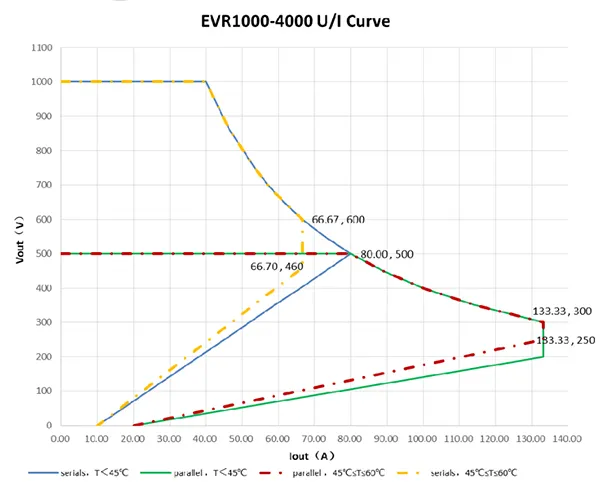

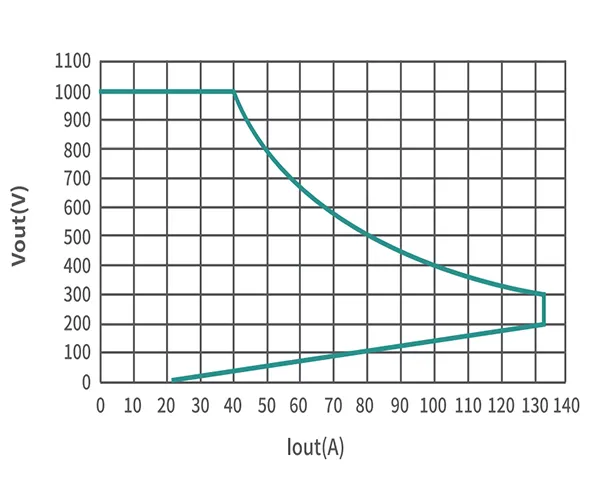

Performance Curves
30kW

30kW

40kW

40kW
